| TYP
20

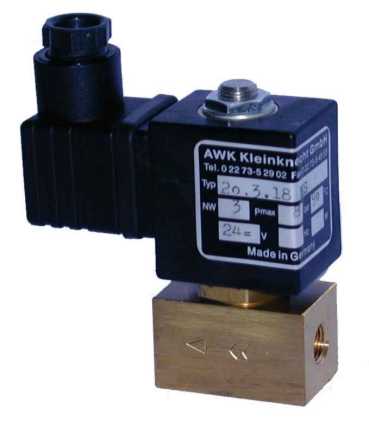

AWK-2/2-Wege Magnetventil, direktgesteuert mit Sitzdichtung
Anwendungsgebiete:
Bewässerungsanlagen, Sanitärtechnik, Trinkwasserversorgung
(Osmose), viele Anwendungen im allgemeinen Maschinen- und
Apparatebau, Rohrleitungsbau. |
|
|
Steuerungsart |
direktgesteuert |
|
Konstruktion |
Sitzventil mit Nippeldichtung |
|
Anschluß |
G 1/8 – G 1/4 |
|
Druck |
0 – 48 bar |
|
Durchflußmedien |
neutrale, gasförmige und flüssige Medien |
|
Mediumtemperatur |
-10°C bis +80°C |
|
Ventilgehäuse |
Messing, Edelstahl |
|
metall. Innenteile |
Messing und Edelstahl |
|
Dichtung |
NBR |
|
Einbaulage |
beliebig |
|
Anschlußspannung |
AC 24V, 110V, 220V/50 Hz, DC 24V |
| Spannungstoleranz |
-10%
+ 15% |
|
Schutzart |
IP 65 – DIN 40050 |
|
Einschaltdauer |
100% ED – VDE 0580 |
|
Kabelanschluß |
Gerätestecker DIN 43650 |
| Leistungsaufnahmen |
Gleichstrom:
10 W |
Wechselstrom:
Anzug 37 VA / Halten 17 VA |
|
 |
|
Nennweite
(mm) DN |
Anschluß
G |
KV-Wert
l / min |
Druck
min. max. DC max. AC |
Best. Nr. |
|
2,0 |
G1/8 |
2,3 |
0 bar |
32 bar |
48 bar |
20.2.18 |
|
2,5 |
G1/8 |
3,0 |
0 bar |
25 bar |
30 bar |
20.2,5.18 |
|
3,0 |
G1/8 |
3,7 |
0 bar |
15 bar |
20 bar |
20.3.18 |
|
3,5 |
G1/8 |
4,5 |
0 bar |
10 bar |
14 bar |
20.3,5.18 |
|
4,0 |
G1/8 |
6,5 |
0 bar |
7 bar |
10 bar |
20.4.18 |
|
5,0 |
G1/8 |
8,0 |
0 bar |
5 bar |
6 bar |
20.5.18 |
|
6,0 |
G1/8 |
9,5 |
0 bar |
2,5 bar |
4 bar |
20.6.18 |
|
2,0 |
G1/4 |
2,3 |
0 bar |
32 bar |
48 bar |
20.2.14 |
|
2,5 |
G1/4 |
3,0 |
0 bar |
25 bar |
30 bar |
20.2,5.14 |
|
3,0 |
G1/4 |
3,7 |
0 bar |
15 bar |
20 bar |
20.3.14 |
|
3,5 |
G1/4 |
4,5 |
0 bar |
10 bar |
14 bar |
20.3,5.14 |
|
4,0 |
G1/4 |
6,5 |
0 bar |
7 bar |
10 bar |
20.4.14 |
|
5,0 |
G1/4 |
8,0 |
0 bar |
5 bar |
6 bar |
20.5.14 |
|
6,0 |
G1/4 |
9,5 |
0 bar |
2,5 bar |
4 bar |
20.6.14 |
Zusätzlich zur Bestellnummer bitte Gehäuse- und
Dichtungswerkstoff sowie Anschlussspannung angeben.
Optional: Schutzart ExsG4
|
|
